OLTP and OLAP

• How should we organize and manage data?

  • Schemas: How should my data be logically organized?
  • Normalization: Should my data have minimal dependency and redundancy?
  • Views: What joins will be done most ofte?
  • Access Control: Should all users of the data have the same level of access
  • DBMS: How do I pick between all the SQL and noSQL options?

• Approaches to processing data

  OLTP	OLAP
  Online Transaction Processing	Online Analytical Processing
  - Find the price of a book	- Calculate books with best profit margin
  - Update latest customer transaction	- Find most loyal customers
  - Keep track of employee hours	- Decide employee of the month

• OLVAP vs OLTP

  	OLTP	OLAP
  Purpose	support daily transactions	report and analyze data
  Data	up-to-date, operational	consolidated, historical
  Size	snapshot, gigabyters	archive, terrabytes
  Queries	simple transactions & frequent updates	complex, aggregate queries & limited updates
  Users	thousands	hundreds

---

Storing Data

• Structuring Data

  1. Structured data
     • Follows a schema
     • Defined data types & relationships
     • E.g:- SQL, tables in a relational database
  2. Unstuctured Data
     • Schemaless
     • Makes up most of data in the world
     • E.g: - Photos, chat logs, MP3
  3. Semi-structued data
     • Does not follow larger schema
     • Self-describing structure
     • E.g: - NoSQL, XML, JSON

          # Example of a JSON file
          'user': {
              'profile_use_background_image': true,
              'statuses_count': 31,
              'profile_background_color': 'CODEED',
              'followers_count': 3066,
              ...
          }


• Storing data beyond traditional databases

  • Traditional databases
    • For storing real-time relational structured data? OLTP
  • Data warehouses
    • For analyzing achieved structured data? OLAP
  • Data lakes
    • For storing data of all structures = flexibility and scalability
    • For analyzing big data

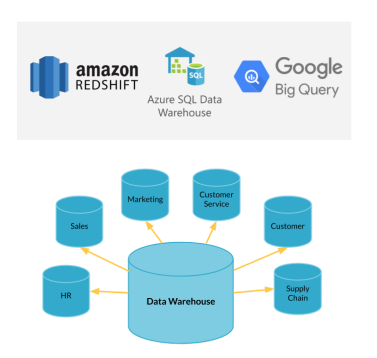

• Data Warehouses

  • Optimized for analytics - OLAP
    • Organized for reading/aggregating data
    • Usually read-only
  • Contains data from multiple sources
  • Massively Parallel Processing (MPP)
  • Typically uses a denormalized schema and dimensional modeling

  Data Marts

  • Subset of data warehouses
  • Dedicated to a specific topic



• Data Lakes

  • Store all types of data at a lower cost
    • E.g:- raw, operational databases, IoT device logs, real-time, relational and non-relational
    • Retains all data and can take up petabytes
    • Schema-on-read as opposed to schema-on-write
    • Need to catalog data otherwise becomes a data swamp
    • Run big data analytics using services such as Apache Spark and Hadoop
      • Useful for deep learning and data discovery because activites requires so much data

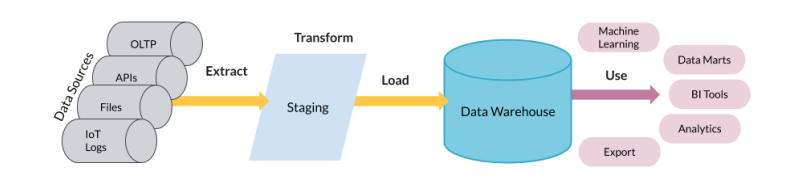

• ETL

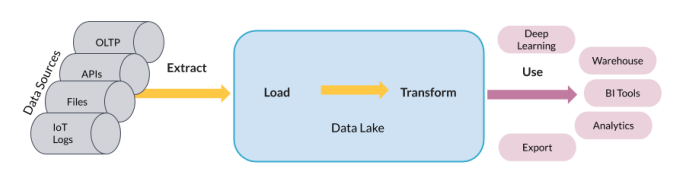

• ELT



---

Database Design

• What is database design?

  • Determines how data is logically stored
    • How is data going to be read and updated?
  • Uses *database models**: high-level specifications for database structure
    • Most popular: relational model
    • Some other options: NoSQL models, object-oriented model, network model
  • Use schemas: blueprint of the database
    • Defines tables, fields, relationships, indexes, and views
    • When inserting data in relational databases, schemas must be respected

• Data Modeling

  Process of creating a data model for the data to be stored.

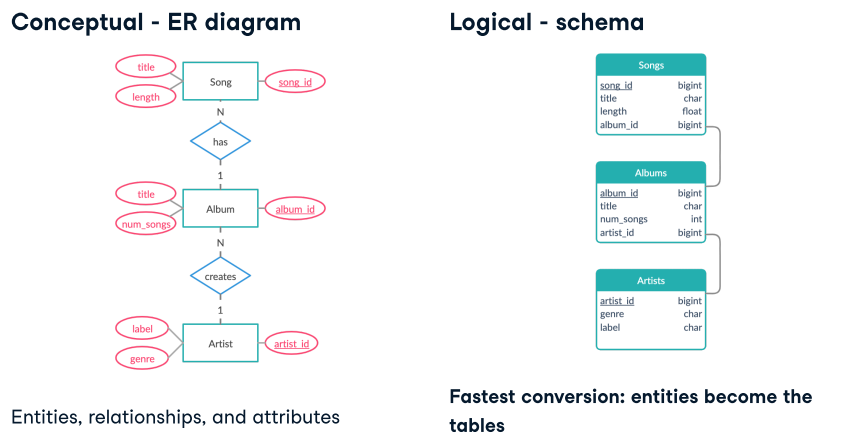

  1. Conceptual data model: describes entities, relationships, and attributes
     • Tools: data structure diagrams, e.g:- entity-relational diagrams and UML diagrams
  2. Logical data modle: defines tables, columns, relationships
     • Tools: database models and schemas, e.g:- relational model and star schema
  3. Physical data model: describes physical storage
     • Tools: partitions, CPUs, indexes, backup systems and tablespaces

• Beyond the relational model-Dimensional Modeling

  Adaptation of the relational model for data warehouse design

  • Optimized for OLAP queries: aggregate data, not updating (OLTP)

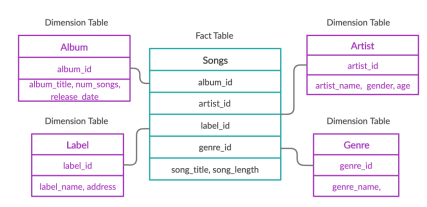

  • Built using the star schema
  • Easy to interpret and extend schema

• Element of dimensional modeling

  Organize by:

  • What is being analyzed?
  • How often do entities change?

  Fact tables

  • Decided by business use-case
  • Holds records of a metric
  • Changes regularly
  • Connects to dimensions via foreign keys

  Dimension tables

  • Holds descriptions of attributes
  • DOes not change as often
